Pressure gauge three-way valve

Miejsce pochodzenia: Chiny Nazwa handlowa: NBSANMINSE
Numer modelu: 306

Szczegóły informacji

Kod: 306 Wątek G1: 1/2"
Nić gniazda ciśnienia G2: M20x1,5 Rozmiar (mm: L80 H68 R80
Ciśnienie nominalne: 1,6 MPa Ciśnienie próbne wytrzymałości: 2,4 MPa
Ciśnienie testowe uszczelnienia: 1,6 MPa Operacja Temperatura: ≤150 ℃
Medium robocze: woda, para, olej Materiał: Mosiądz

opis produktu

The three-way valve of the 306 pressure gauge can be directly connected to the pressure gauge and is generally used for sealing small flow, high pressure gas or liquid (such as steam, oil) media. Widely used in power plants, steel plants, petroleum, and chemical industries. The pressure gauge three-way valve has the advantages of easy installation and disassembly, tight connection, high fire and explosion resistance, high pressure resistance, and good sealing performance. It is an advanced connection method valve in power plants, oil and chemical equipment, and instrument measurement pipelines.

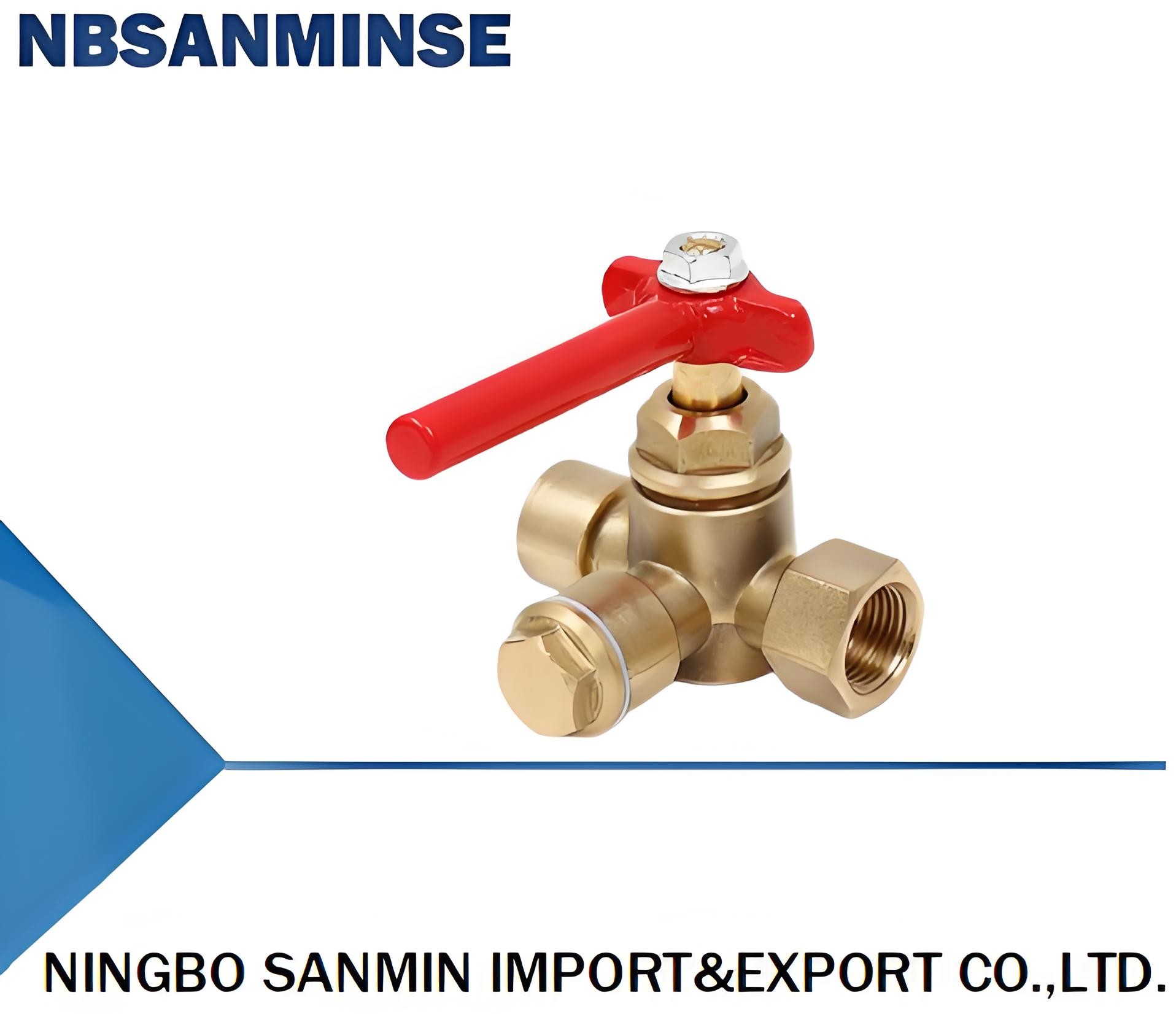

Pressure gauge three-way valve 0

code thread G1 Pressure gauge thread G2 size(mm)
      L H R
306 1/2" M20x1.5 80 68 80
Nominal pressure 1.6Mpa
strength test pressure 2.4Mpa
Seal test pressure 1.6Mpa
operation temperature ≤150℃
Working medium Water, steam, oil
