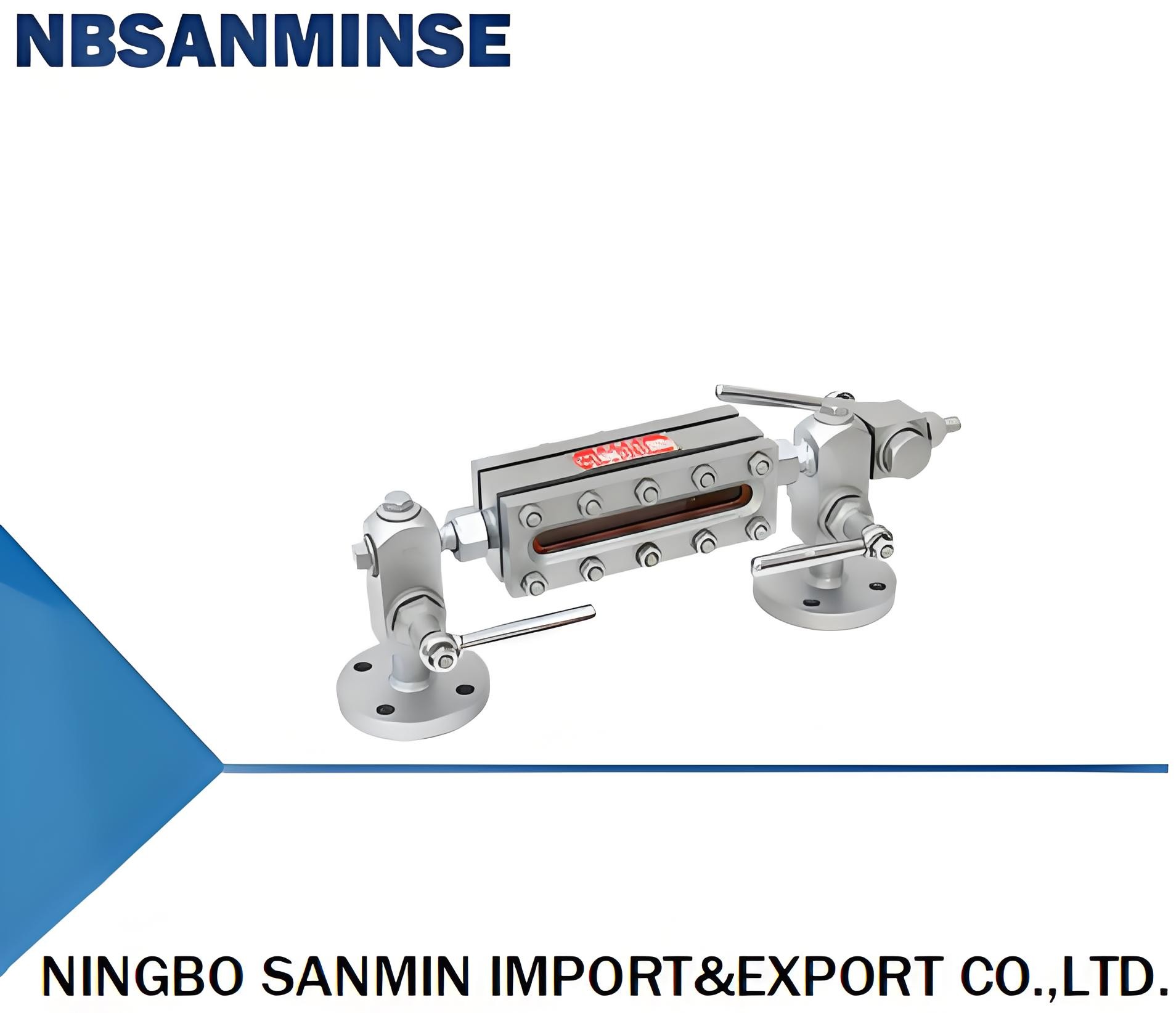

Steel flat plate level gauge

Miejsce pochodzenia: Chiny Nazwa handlowa: NBSANMINSE
Numer modelu: FL-105-300 FL-105-350 FL-105-440 FL-105-600 FL-105-670 FL-105-A

Szczegóły informacji

Kod: FL-105-300 FL-105-350 FL-105-440 FL-105-600 FL-105-670 FL-105-A Rozmiar (mm): L 300 350 440 600 670 A L1 145 172 200 350 420 BD 115 (105) D1 85 (75) D2 65 (55)
Nazwa części: Giersko uszczelniające zawór uszczelnia Materiał: Q235, kutasy stalowe tulei grafit niski alkaliczny borokrzemian
Ciśnienie nominalne: 2,5 (4.0) MPa Ciśnienie próbne wytrzymałości: 4,0 (6,4) MPa
Ciśnienie testowe uszczelnienia: 2,5 (4.0) MPa Operacja Temperatura: ≤225 ℃
Medium robocze: woda, para, olej

opis produktu

Hot spot of 105 steel flat plate level gauge: Advantages of flat plate level gauge: professional manufacturer | suitable for high temperature | good quality. Flat level gauges are suitable for various complex measurements, such as small dielectric constant media, large temperature and pressure changes, corrosive working conditions, media such as fly ash, and volatile corrosive liquid media Order now!

Steel flat plate level gauge 0

code size(mm) Part name material
  L L1 D D1 D2
FL-105-300 300 145 115(105) 85(75) 65(55)
FL-105-350 350 172
FL-105-440 440 200       valve body Q235, forged steel
FL-105-600 600 350       Sealing bushing
FL-105-670 670 420       Glass gasket graphite
FL-105-A A B       glass Low alkali high borosilicate
Nominal pressure 2.5(4.0)Mpa
strength test pressure 4.0(6.4)Mpa
Seal test pressure 2.5(4.0)Mpa
operation temperature ≤225℃
Working medium Water, steam, oil
