Płytki miedziane trzystopniowy zawór z wtyczką łączący mierniki ciśnienia 0,6MPA

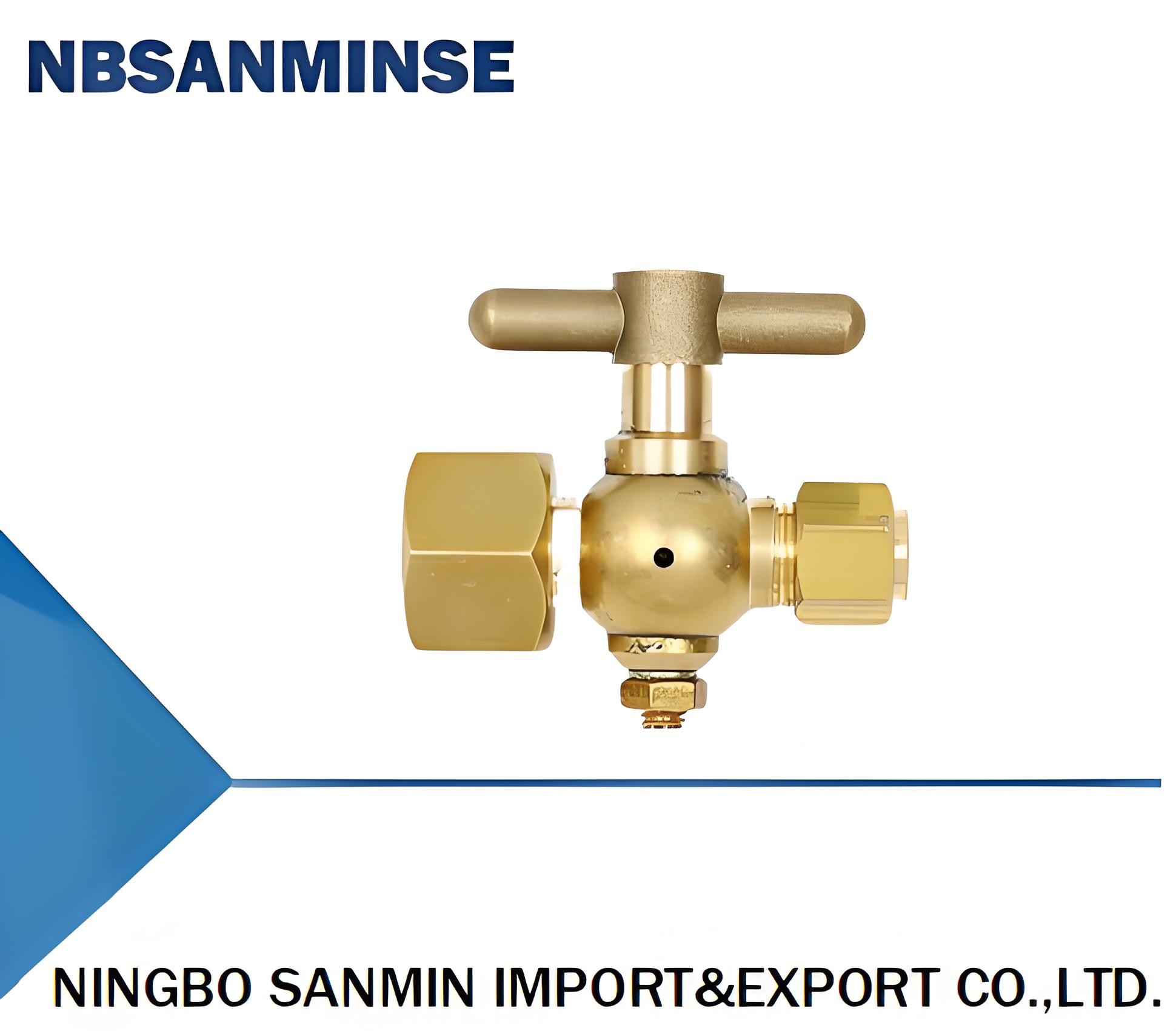

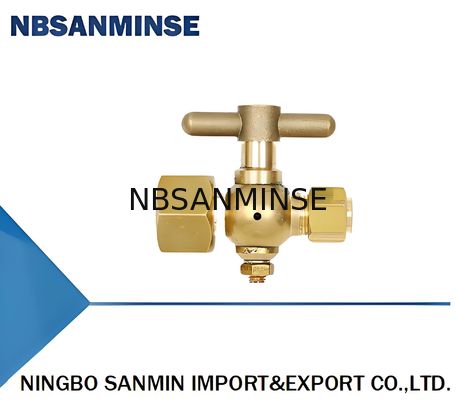

308-10 three-way plug valve is mainly used for connecting pressure gauges. The plug valve is a rotary valve with a closing element or plunger shape. It is a type of valve that can be opened or closed by rotating 90 degrees to make the channel port on the valve plug the same or separate from the channel port on the valve body. The nominal pressure 0.6MPA,strength testing is 1.6MPa.

Our company's product, the three-way plug valve, has superior and precise polishing technology, precise dimensions, easy welding between pipe fittings, and quick assembly; The wall thickness between the pipe ends is consistent, ensuring smooth product flow and avoiding residue. Welcome to come and purchase.

Code internal thread connecting pipe
308-06 M20*1.5 Ф6
308-08 M20*1.5 Ф8
308-10 M20*1.5 Ф10

Cock valves have diverse applications, from controlling household water and gas to draining industrial systems and isolating pressure gauges. They function as stopcocks in residential plumbing to turn off the main water supply, act as drain valves for removing moisture and sediment from air compressors and water heaters, and serve as process valves in industries for handling various liquids, gases, and chemicals.

Industrial Systems:
Draining: Drain cock valves are used to remove condensate (water, oil, rust) from air compressors, tanks, and pipelines in industrial plants.
Gas and Fuel: Widely used in gas and fuel applications, including petroleum pipelines.
Water and Wastewater: Used in various water systems for control and flow diversion.
High-Temperature Applications: Found in high-temperature flows and for boiler feed water.
Corrosive Chemical Applications: Their versatility allows them to handle corrosive chemicals.
