Szczegóły Produktu:
|
| Kod: | 306 | Wątek G1: | 1/2 " |
|---|---|---|---|
| Nić gniazda ciśnienia G2: | M20x1,5 | Rozmiar （mm: | L80 H68 R80 |
| Ciśnienie nominalne: | 1,6MPA | Ciśnienie próbne wytrzymałości: | 2,4 MPa |
| Ciśnienie testowe uszczelnienia: | 1,6MPA | Temperatura pracy: | ≤150 ℃ |
| Medium robocze: | woda, para, olej | Tworzywo: | Mosiądz |
| Podkreślić: | 1.6Mpa Zawór trójstronny,Wymagania w odniesieniu do wprowadzenia w życie niniejszego rozporządzenia,1.6Mpa 1 2 miedziany zawór magnetyczny |
||

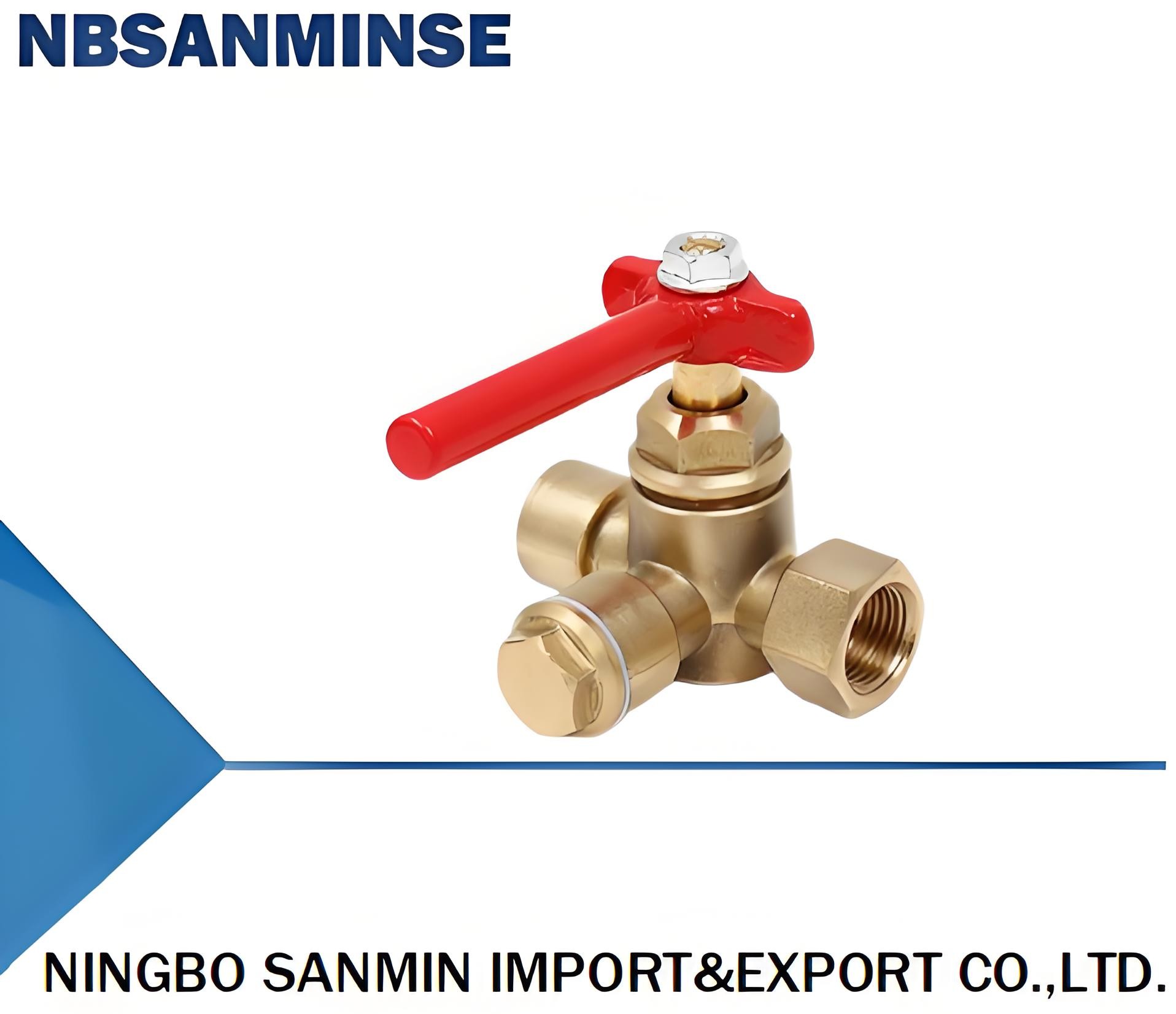

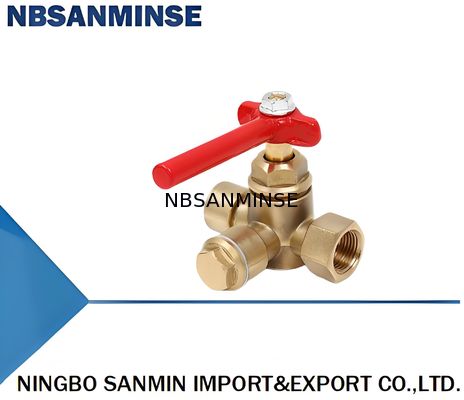

The three-way valve of the 306 pressure gauge can be directly connected to the pressure gauge and is generally used for sealing small flow, high pressure gas or liquid (such as steam, oil) media. Widely used in power plants, steel plants, petroleum, and chemical industries. The pressure gauge three-way valve has the advantages of easy installation and disassembly, tight connection, high fire and explosion resistance, high pressure resistance, and good sealing performance. It is an advanced connection method valve in power plants, oil and chemical equipment, and instrument measurement pipelines.
| code | thread G1 | Pressure gauge thread G2 | size(mm) | ||
| L | H | R | |||
| 306 | 1/2" | M20x1.5 | 80 | 68 | 80 |
| Nominal pressure | 1.6Mpa | ||||
| strength test pressure | 2.4Mpa | ||||
| Seal test pressure | 1.6Mpa | ||||
| operation temperature | ≤150℃ | ||||
| Working medium | Water, steam, oil | ||||
