Szczegóły Produktu:
|
| Kod: | TL103-15 TL103-20 | Rozmiar (mm): | D1 1/2 „3/4” |
|---|---|---|---|
| Nazwa części: | Uchwyt elementu uszczelnienia zaworu | Tworzywo: | Brass PTFE |
| Ciśnienie nominalne: | 0,6MPa | Ciśnienie próbne wytrzymałości: | 1.0MPA |
| Ciśnienie testowe uszczelnienia: | 0,6MPa | Temperatura pracy: | ≤200 ℃ |
| Medium robocze: | woda, para, olej | ||
| Podkreślić: | Wskaźnik poziomu cieczy D1 1/2”,Uszczelnienie wskaźnika poziomu cieczy,Wskaźnik poziomu cieczy z trzema uchwytami |
||

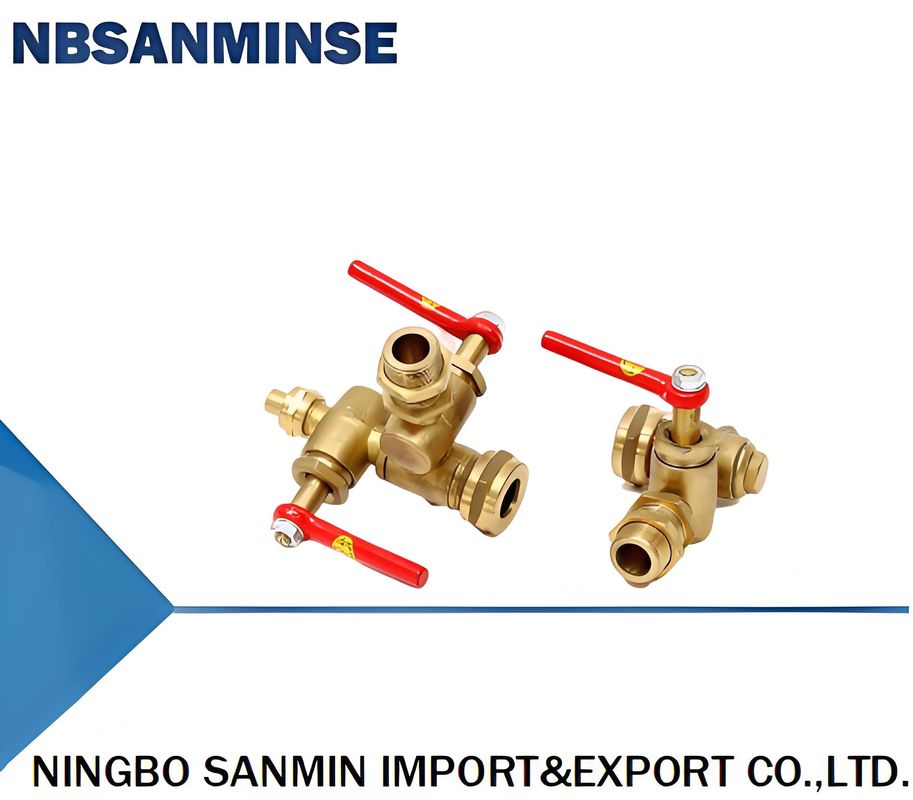

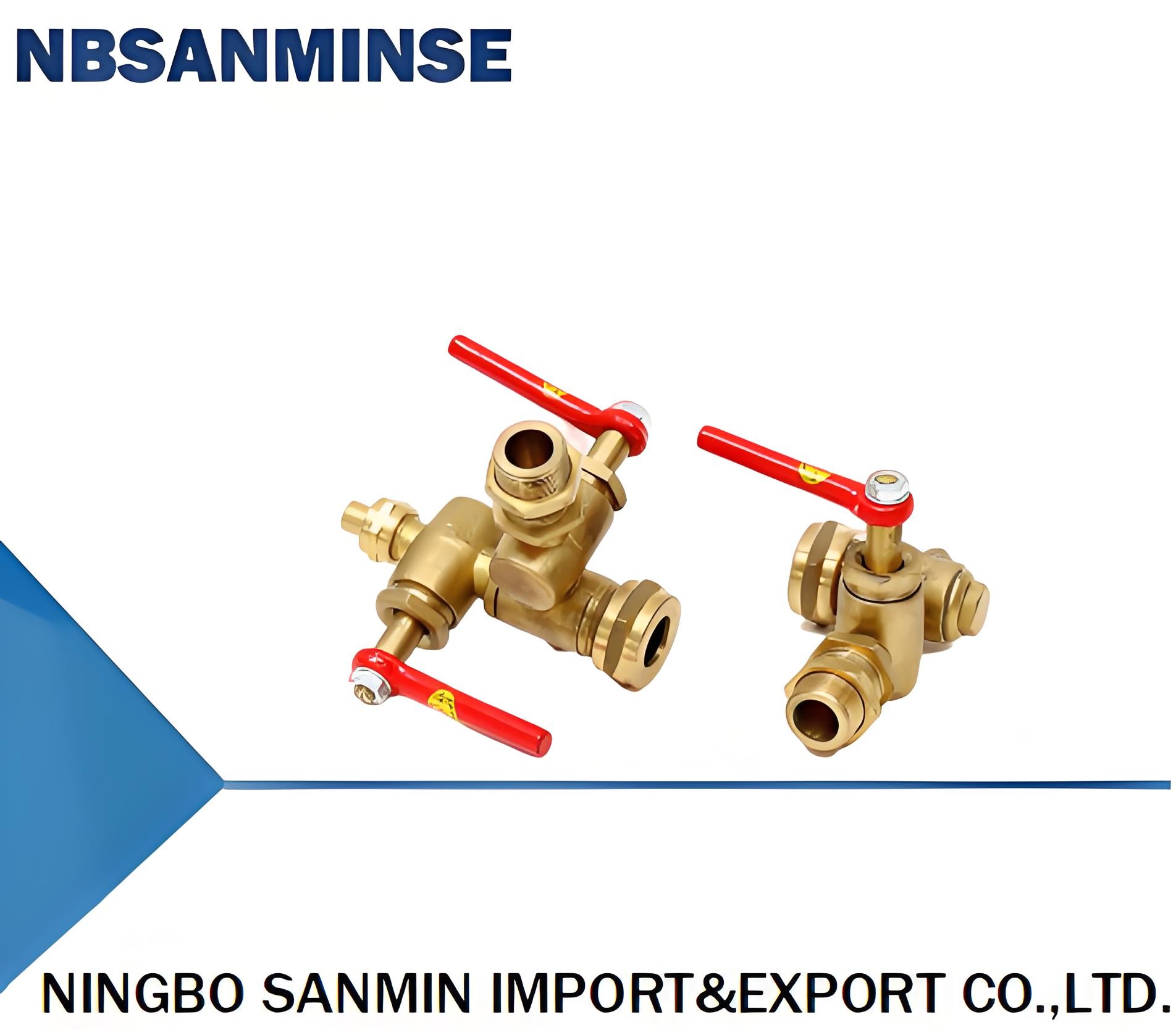

This level gauge (also known as a water level gauge) is suitable for water, steam, and reservoirs with a working temperature t ≤ 200 ℃, and is used to indicate the level of liquid through a glass tube. 103 X29F-6T type code: 103 X29F-6T type (three handles/pair) water level gauge main parts material part name material valve body brass seal polytetrafluoroethylene (plastic king) handle forged steel main technical parameters nominal pressure PN0.6MPa strength test pressure 1.0 sealing test pressure 0.6 working temperature ≤ 200 ℃ working medium: water, steam, oil
| code | size(mm) | Part name | material | |||
| D1 | D2 | L1 | L2 | valve body | brass | |
| TL103-15 | 1/2" | 14 | 87 | 25 | Sealing element | PTFE |
| TL103-20 | 3/4" | 19 | 95 | 30 | handle | forged steel |
| Nominal pressure | 0.6Mpa | |||||
| strength test pressure | 1.0Mpa | |||||
| Seal test pressure | 0.6Mpa | |||||
| operation temperature | ≤200℃ | |||||
| Working medium | Water, steam, oil | |||||
